HN4D Computer Control Fancy Yarn Machine

HN4D Computer Control Fancy Yarn Machine
Product Type:

Textile Machinery >> Knitting machines >> Other knitting machine

Keyword: Fancy Yarn Machine
Uses:
Origin:China
If you are interested, please contact us!
Port: shanghai
Payment Terms: L/C
1 2 3 4 5 6 7 8 9
Detailed Product Description
Specifications:

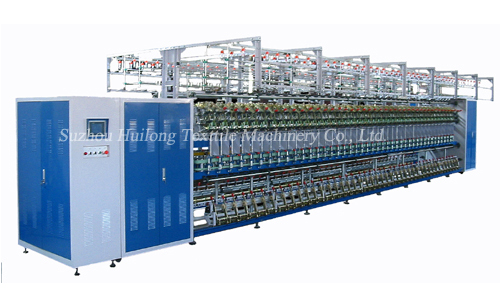

HN4D Computer Control Fancy Yarn Machine
点击查看大图
hspace=0
Intro:
Two drafting zones made-up by two rear rollers, one middle roller and one front roller on the machine can produce all kinds of fancy yarn with two colors gradual changing and sudden changing.

Specification:
Gauge of Number:  84
Gauge of Spindle:   200mm
Producing Yarn Count: 1.5~30Nm
Drafting Time: 1~50
Output Speed: 5~30m/min
Hollow Spindle Speed: 2000~10000rpm
Over-Feeding:  1:1~1:3
Tension: 0.8~1.2
Twist Direction:   S、Z
Untwisting: 0.2~0.8
Diameter of Ring: Φ 150mm
Up/down Distance: 380mm
Spindle Speed: 700~6000rpm
Power Supply:  <22kw
Measurement: 11020*4620*2475mm
